Switronix FlyPack: Distribute Power for Your Camera & Other Peripherals Through One Device

06.30.13 @ 9:27PM Tags : , , ,

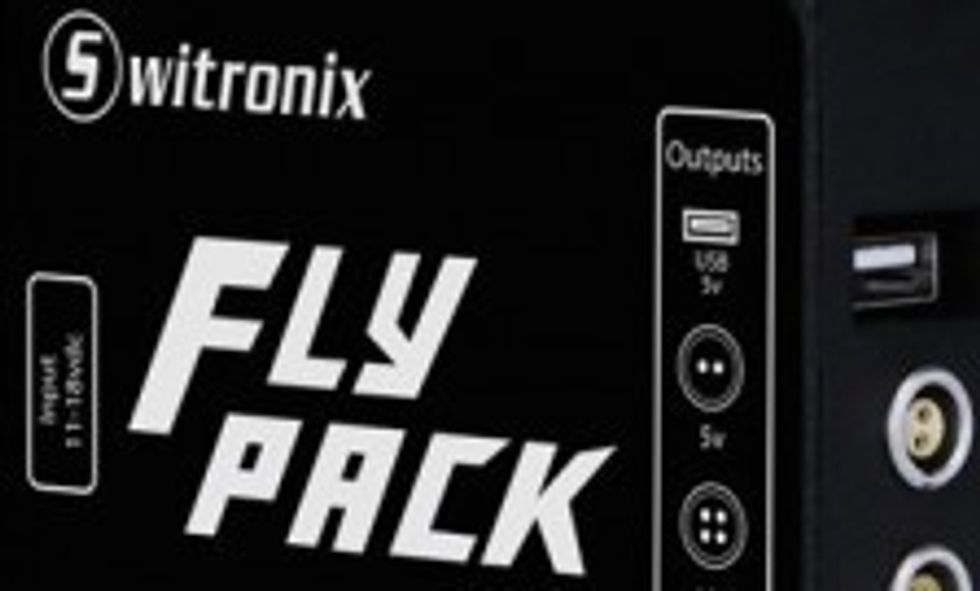

Switronix-FLYPACK_212-croppedSwitronix is no stranger to power solutions for shooters, and they’re introducing a brand new scaled-down version of their JetPack for those people who don’t need the battery solution, but want a way to power a number of devices from one source. The new FlyPack series should work well for camera setups that are mostly built up, but need the convenience of power management. Click through for some of the FlyPack specs, which includes two versions: the Base and the 212.

Here are the specs for both (shown on the right is the 212):

Switronix-FLYPACK_BASE

Size: 3.65″ x 3.175″ x 1.08”
Weight:
 0.5 lbs
Power Input :
4pin 0B Lemo
Included Cable:
Powertap to 4p 0B Lemo
Input Voltage:
11-18vdc

Outputs on 212:

USB Output: 5V, 1a** (i.e. Redmote, Tascam DR-05, other USB device)
LEMO 2-pin(0B):
5v, 2.5a (i.e. Zoom, AJA)
LEMO 4-pin(0B): 12v, 2.5a.  Includes two 12v outputs. (i.e. Blackmagic, 12v accessories)

Outputs on Base:

USB Output: 5V1a** (i.e. Redmote, Tascam DR-05, other USB device)
LEMO 2-pin(0B):
5v, 2.5a (i.e. Zoom, AJA)
LEMO 3-pin(0B):
7.2v, 2.5a (i.e. HDV Cameras, DSLRs)
LEMO 4-pin(0B):
12v, 2.5a (i.e. Blackmagic, 12v accessories)

Mounting Points: Three 1/4-20 threads on back


With more devices hanging off cameras than ever, if you’re using a higher-end battery solution, like V-mount or Gold-mount batteries, it only makes sense that you would want to power everything from that one battery. For example, if you have a monitor and external recorder hanging off your camera, having three separate batteries for all three devices can get a bit unwieldy, but something like the FlyPack All-In-One Power distributor can help makes things that much cleaner and simpler so you aren’t driving yourself crazy trying to keep multiple sets of batteries charged.

I personally really like that Switronix is using Lemo connectors for this as well as for the JetPack. Most professionals are probably familiar with them, but for those who don’t know it’s just a higher-quality connection than your standard power plug.

Neither are available to buy just yet, but the MSRP is $219 for both. Check out more information about both of them and see what else Switronix has cooking over on their website.

Links:

Disclosure: Switronix is a nofilmschool advertiser.

Related Posts

  1. The Switronix TorchLED Bolt is Small, but It Packs a Punch
  2. Meet Switronix's Blackmagic-Ready Wireless HD-SDI Recon Micro & Hot-Swappable Battery JetPack
  3. Catclaw: An Inexpensive Solution for Powering Your Blackmagic Cinema Camera or DSLR

COMMENT POLICY

We’re all here for the same reason: to better ourselves as writers, directors, cinematographers, producers, photographers... whatever our creative pursuit. Criticism is valuable as long as it is constructive, but personal attacks are grounds for deletion; you don't have to agree with us to learn something. We’re all here to help each other, so thank you for adding to the conversation!

Description image 6 COMMENTS

  • Mher Hakobyan on 07.1.13 @ 2:43AM

    Switronix FlyPack FP-Base
    Switronix FlyPack FP-212

    is this charger or like a battery?

    • Joe Marine on 07.1.13 @ 3:47AM

      Neither, it’s simply a power distributor. You plug your battery into the input and then you can power a number of devices from the outputs.

  • David Sharp on 07.1.13 @ 12:48PM

    I got a jetpack from Switronix, and a mounting adapter from wooden camera, those 2 combined were almost $1,000 cheaper than Red’s solution. :) they were very cost effective.

  • Daniel Mimura on 07.9.13 @ 7:08PM

    I wish they would streamline products like this and just put an AB or V-mount plate on it as well (right there where the words “Fly Pack” is written) instead of powering it out thru a p-tap. I use a p-tap cube to do what this does (it’s smaller and less than half the price, but when you include the different cables and adapters, maybe not), but it’s nice to hv all the LEMO’s…
