February 10, 2015

FlexTilt from Edelkrone is a Compact Tripod Head That Can Also Rise & Tilt

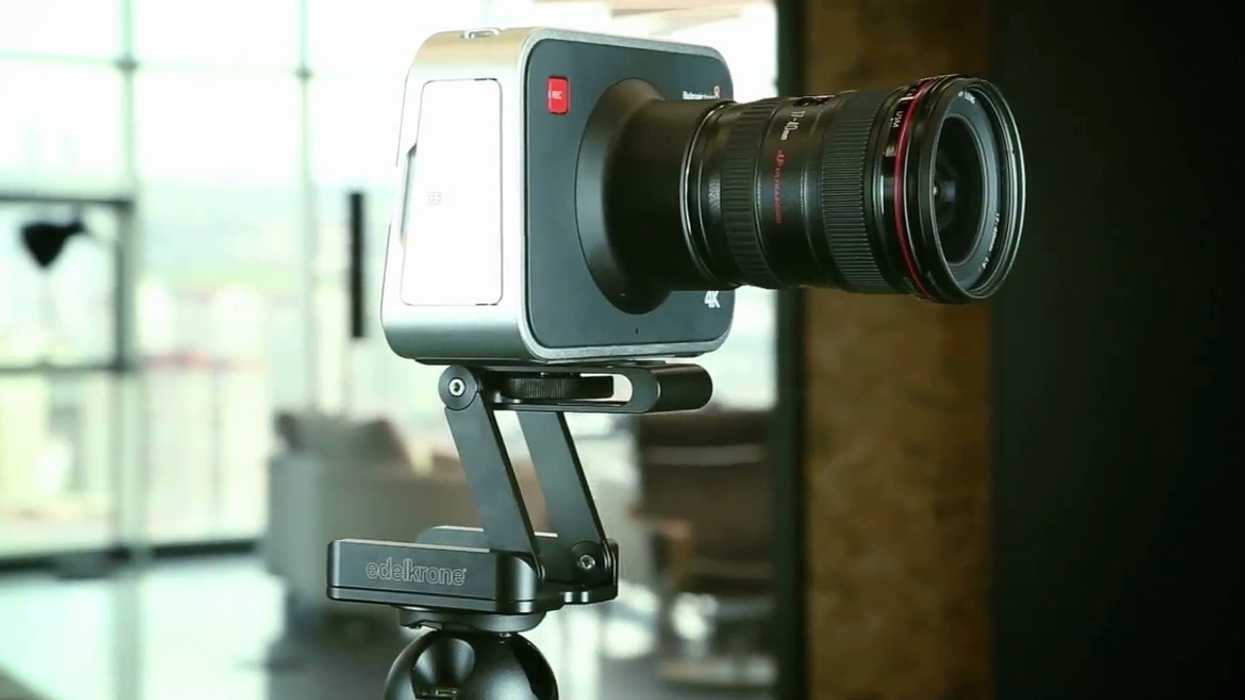

Edelkrone Introducing FlexTilt Head
While the result hasn't always been perfect, edelkrone has consistently tried to come up with innovative solutions for filmmaking problems.

Here's a first look at their new FlexTilt Head, which seems like it might be an interesting option to expand the usability of sliders or other flat-based tripods without adding much weight:

Here are the specs on it:

  • Folded Size: (L x W x H) 3.3 x 3.7 x 1.06 inches (85 x 95 x 27mm)
  • Weight: 0.405 kg
  • Carrying Capacity: up to 5.5 pounds (2.5 kg)
  • Mount: 1/4"-20 on top and 3/8"-16 on bottom
  • Materials: CNC machined aluminum construction with delrin components and stainless steel screws
  • Availability: End of February
  • Price: $100
Edelkrone FlexTilt Head

While it's not super cheap, it seems like it could be one of those tools you have in your bag that take out when you need it. I could see this being really useful for sliders when you want to keep your rig super light. If you need just a little bit more height (and then a tilt) or you need to get closer to the object without moving the slider, the FlexTilt seems like it would do the job. For even greater flexibility, you could also probably put a little ball head on top, and then put the camera on that.

My only worry is how long it would stay as sturdy as you need it. A Noga arm sort of tie-down would be helpful for something like this, but then it wouldn't be as compact. I also wish it had 3/8" and 1/4"-20 on both the top and the bottom, especially as you start putting heavier cameras up to 5.5 pounds. Either way, it's an interesting concept and one that could certainly be expanded upon.

Your Comment

2 Comments

I like the idea and that it can supposedly support the weight of a BMCC, but in reality my BMCC is always inside its cage with added batteries etc. With a bit of kit its probably gonna be too heavy, right? And I cant see myself disassembling the rig that the BMCC very much needs to be any good every time I need the riser head.

February 11, 2015 at 3:06AM

0
Reply
avatar
Jeroen Rommelaars
Animator - Videographer - Motion Tracking
921

That is literally the most overpriced and useless piece of junk I've ever seen. Lets be honest. They're charging over a hundred freakin' dollars for that thing? Ridiculous.

February 11, 2015 at 10:58PM

0
Reply
avatar
Brandon Neubert
Color Artist / Writer / Director
697
