These 30 and 55-watt models are ideal for the filmmaker on the go.
Fresnel lenses give filmmakers great control over the focus of light and can help add throw distance to a unit while keeping weight down. The new CAME-TV Boltzen Fresnel LEDs take that standard and mold it into a sleek, compact design. While the cans may produce a nice soft light, they're still able to put out a decent amount of power.
The fresnel lens allows them to push light further out, so instead of buying one big light, you can set these lights pretty far away and you’ll still get a high level of intensity. It all proves that you don’t need a powerful light to illuminate out very far if you have the right lens.

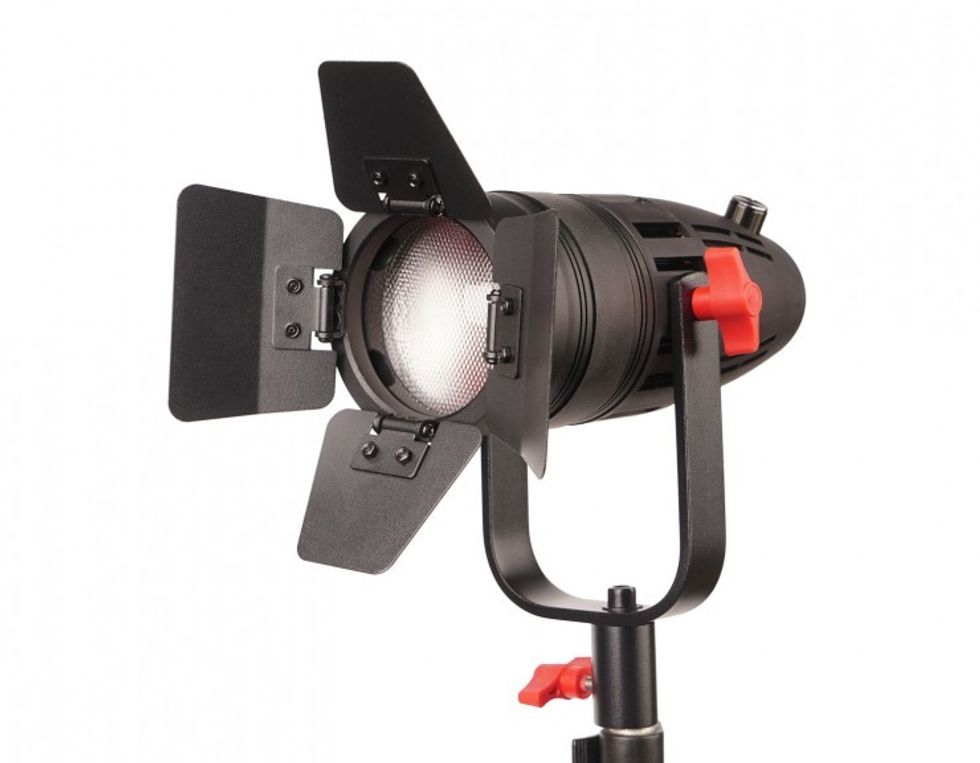

Perhaps most useful about this video light is the fact it includes an adjustable fresnel lens to help focus the light and provide a longer throw. When used without the lens, the light becomes a wider flood, and the included barn doors help control the spill. This versatility allows you to go from a tight spot to a wide flood all in one continuous light.

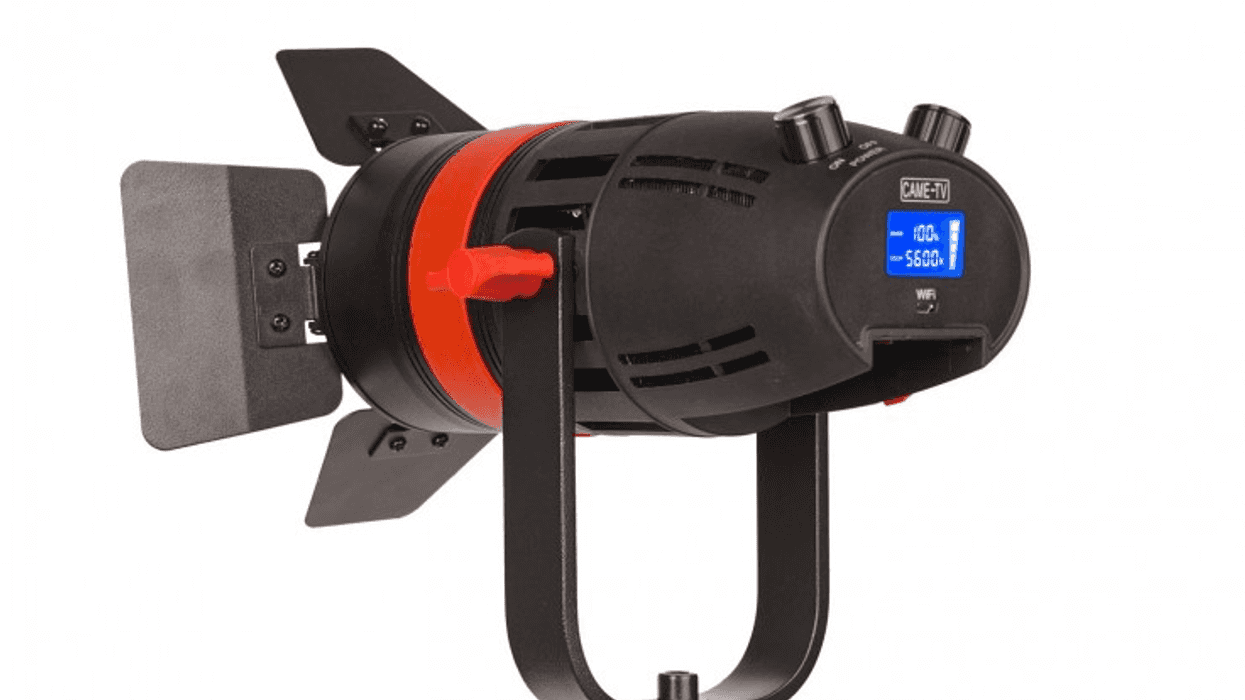

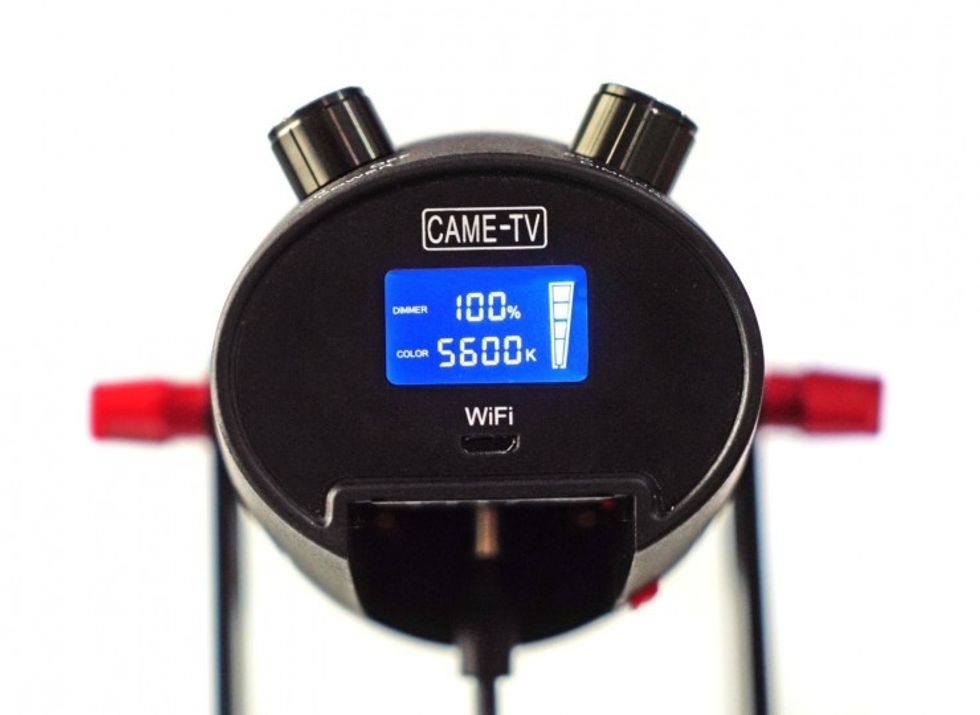

There are two new models of CAME-TV's new Fresnel LED: 30-watt and 55-watt. The front of the light is all metal, while its back is made up of plastic. There is no fan on the 30-watt model, while the 55-watt has a fan that’s barely audible. It features knobs for powering on and dimming, as well as a digital display at the very back. These are only daylight lights, so they don’t switch colors. However, you can add optional filters, as the package comes with three different filters, including a tungsten.
This 30-watt is truly one of the smallest fresnel LED’s at this wattage. At about the same size as the Canon 70-200 lens, it's very portable, so you could store a bunch of them in a relatively small bag. Check out the video below for a demonstration of the light's power:
Gear Info:
30 Watt Model - CAME-TV Boltzen 30w Fresnel Fanless Focusable Led Daylight
Key Features
- (1) LED COB (Chip On Board)
- Fanless for quiet operation
- Barndoor can easily adjust the lighting direction
- AC Power Adapter included
- Dimming Knob can steplessly adjust the brightness according to users’ need.
- LCD Display Screen
- Can be powered from NP-F970 battery or V-Mount Battery

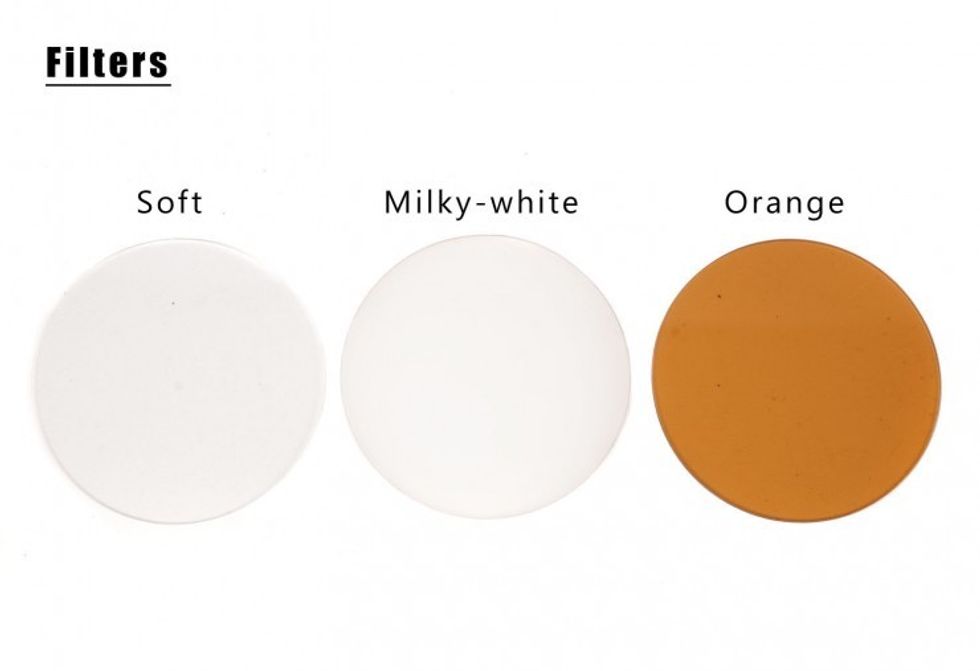

- Filter Set includes Soft, Milky-White and Orange filters that can change the color temperature to match an existing setup or create a specific lighting look.
- Optional Bowens-Mount provides an easy way to mount a softbox and any other studio accessories
- High CRI (Ra96)
- AC Power: 100V-240V
- DC Voltage: 7.4 -12V
- Color Temperature: 5600K
55 Watt Model - CAME-TV Boltzen 55w Fresnel Focusable Led Daylight
Key Features
- (1) LED COB (Chip On Board)
- Built-in fan
- Barndoor can easily adjust the lighting direction
- AC Power Adapter included
- Dimming Knob can steplessly adjust the brightness according to users’ need.
- LCD Display Screen
- Can be powered from NP-F970 battery or V-Mount battery
- Filter Set includes Soft, Milky-White and Orange filters that can change the color temperature to match an existing setup or create a specific lighting look.
- Optional Bowens-Mount provides an easy way to mount a softbox and any other studio accessories
Tech Specs:
- High CRI (Ra96)
- AC Power: 100V-240V
- DC Voltage: 7.4 -12V
- Color Temperature: 5600K
Best of all, the lights are very affordable. You can purchase the 30-watt unit for $258 and the 55-watt unit for $288.
