The Nolab Digital Super 8 Cartridge Can Make Your Film Cameras Go Digital

There is no shortage of film cameras on the market these days. From small 8mm and Super 8 cameras to Super 16 and Super 35 film cameras, there are many available for rental or purchase. In a technical sense, these cameras can never truly become obsolete because they are analogue and purely mechanical by nature. There's only one problem: film is really damn expensive. Not only the stock itself, but the processing and the DI as well. But what if these old mechanical cameras could be repurposed with modern technology in order to create digital images? Well, with the Nolab Digital Super 8 Cartridge, they can.

At first glance, the idea seems kind of crazy. Why use film cameras to capture a digital image? Doesn't that defeat the purpose? Well, yes and no. Of course, many people shoot film because they prefer the aesthetic. However, in the case of the Super 8 cameras that took the proprietary Kodak film cartridges (which apparently you can still buy), an innovation like this has the potential to give new life to hardware that would otherwise sit and gather dust indefinitely.

With the hope of creating a product that could allow people to repurpose some of the cool old Super 8 cameras, designer Hayes Urban set out to create a digital cartridge. What he came up with was the Nolab Digital Super 8 Cartridge. Here's what he had to say about the device:

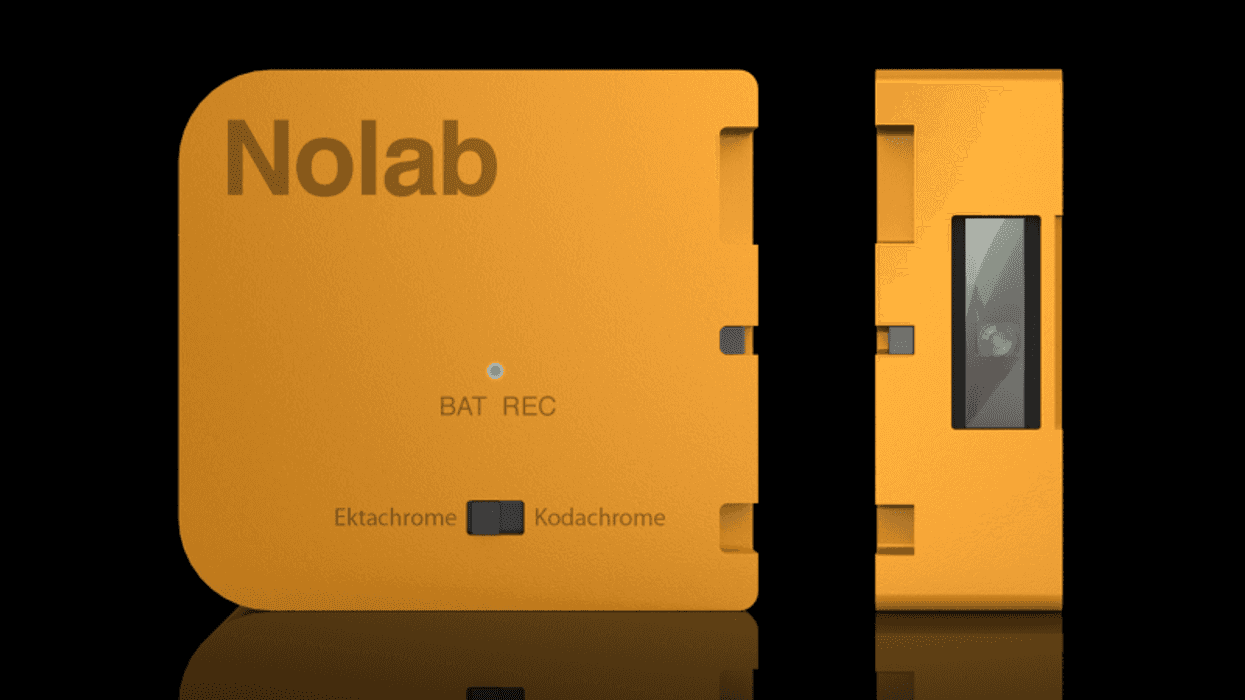

At the heart of the Nolab Digital Super 8 Cartridge is a tiny but powerful 5 megapixel image sensor similar to the one in your smartphone. Combined with a custom glass objective lens, the sensor focuses on a ground glass image plane pressed against the camera’s film gate. By using a 5 megapixel sensor we can capture 720p HD footage at the native Super 8 aspect ratio of 4:3.

Processors integrated into the image sensor are able to  process and encode the footage in real time to a removable SD card. Optionally the same processors can apply one of two predefined Film Look color correction filters to the footage.
That sounds simple enough, To allow the Nolab cartridge’s image sensor to synchronize with the camera’s shutter, a unique sensor had to be developed. It’s this design that allows the cartridge to work properly in any camera at any frame rate up to 60 fps.

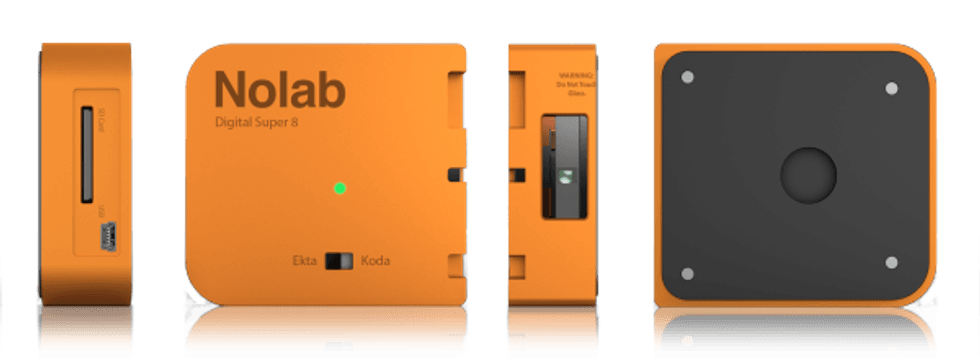

Nolab 2

Here are the basic specs:

Features

  • 720p HD video capture in 4:3 format
  • Frame rate automatically adjusts to camera settings (up to 60 fps)
  • Integrated Film Look options
  • Unlimited storage via removable SD card
  • Battery and recording status light

Specifications

  • Image Sensor: 5 megapixel Omni Vision OV5600 series
  • Video Encoding: 720p HD H.264 (4:3)
  • Memory: Removable high capacity SD card
  • Connections: One mini USB port (primarily for charging)
  • Battery: Rechargeable LiPo battery providing up to 3 hours of continuous recording
  • Housing: Machined aluminum, color anodized and laser etched
  • Height: 70mm
  • Width: 75mm
  • Depth: 24mm
  • Weight: 160g

This is one of those developments that is fantastic conceptually, but for people who are serious about filmmaking, a 720p 4:3 image compressed to h.264 is not going to cut it. With that said, however, this device is only in the early stages of development, so depending on what kind of imaging and processing technology ends up in the cartridge, it could potentially end up with higher resolution and a better codec (maybe even Cinema DNG).

If that were to happen, then we could very well see a resurgence of Super 8 cameras being used by budding filmmakers. (It certainly seems preferable to cell phone filmmaking.) Depending on how expensive the Nolab cartridge is (if it ever hits the market), this could potentially be a much cheaper way for people to get started with budget filmmaking. Considering how abundant and cheap Super 8 cameras are, it's not a stretch to imagine this being a solid budget option if the technology inside the cartridge improves.

If you want to read more about the Nolab Digital Super 8 Cartridge, head over to Hayes Urban's site to get the full report. If you're interested in the device, make sure you voice your support while you're there, because this is certainly the type of product that can be successfully kickstarted.

[Note: An earlier version of this article stated that Kodak film cartridges had been discontinued , which was incorrect. We have since updated the information. NFS regrets the error.]

What do you guys think? Could this potentially be a viable product for filmmakers if the imaging technology improves,  or are those old super8 cameras completely irrelevant in the modern day? Let us know your thoughts down in the comments!

Link: Digital Super 8 -- Hayes Urban

Your Comment

89 Comments

This blows my mind..

December 7, 2013 at 12:13PM, Edited September 4, 8:21AM

36
Reply
Ian B

Amazing...imagine this with a 2K sensor? Or a 4K one? I'll support this.

December 7, 2013 at 12:16PM, Edited September 4, 8:21AM

0
Reply

It's a cool idea. Would be great to be able to film on an old 8mm camera, with the engine whirring away.

That said, it's perhaps too technical a product to appeal to people who are not film tech nerds - you have to have or find a working 8mm camera that takes kodak cartridges. Film tech nerds who want the 8mm look can use other methods, like vintage lenses on the Blackmagic Pocket.

I'd guess there's not enough of a market to make it viable, but if the makers are looking for Beta testers, please let me know

December 7, 2013 at 12:22PM, Edited September 4, 8:21AM

1
Reply
Alex Davidson

There are millions of functional super 8 cameras in basements, attics, closets and thrift stores. They all use the same cartridge. This is actually quite viable. Especially with hipsters.

December 7, 2013 at 12:33PM, Edited September 4, 8:21AM

0
Reply

I bought a Canon 514 XL-S with a constan f1.4 zoom. More of a present to myself than anything.
Was thinking about shooting something in Super8 film just to try it out, but actually being able to shoot digital with it would be crazy!

And it's the physical shutter that makes the most difference to me.

December 7, 2013 at 9:43PM, Edited September 4, 8:21AM

0
Reply

Imagine if they made these for 35mm? Buy an Arri 2C on eBay for a couple thousand bucks then a 4K digital cartridge....bam. As long as the cartridge was reasonably priced, that's a beautiful idea *tears*

December 7, 2013 at 12:22PM, Edited September 4, 8:21AM

0
Reply
Kahriq

The challenges of making this work for threaded 35mm cameras is a bit beyond current technology methinks, but give it time.

December 7, 2013 at 12:33PM, Edited September 4, 8:21AM

9
Reply

Aaton Digital Mag for the Pelelope was a concept that could have happened.

December 7, 2013 at 6:44PM, Edited September 4, 8:21AM

0
Reply
Paul Watt

If that happens, those cameras would suffer an instant price boost.

December 8, 2013 at 4:40AM, Edited September 4, 8:21AM

0
Reply
maghoxfr

I smell an anamorphic adapter.

December 7, 2013 at 12:29PM, Edited September 4, 8:21AM

0
Reply
Louis

I've been thinking about this for years. Glad someone's finally giving it a serious attempt.

December 7, 2013 at 12:32PM, Edited September 4, 8:21AM

1
Reply

If they get the price right an interestung novelty.... But with plugins etc i kinda think why would you?

December 7, 2013 at 12:41PM, Edited September 4, 8:21AM

10
Reply
Paul Russell

Because instead of getting an entire new camera system, you could just get a new brain for the camera you already have. It's really no different than buying a new camera body, but using the same lenses.

Plus it'd be fun.

December 7, 2013 at 2:12PM, Edited September 4, 8:21AM

0
Reply
Jake

What is the cost of the cartridge?

December 7, 2013 at 1:00PM, Edited September 4, 8:21AM

13
Reply
Everette

I still shoot Super8, have 6 cartridges left. Would love to have this, but all depends on the pricepoint.

December 7, 2013 at 1:10PM, Edited September 4, 8:21AM

1
Reply

I'd be interested to see some footage!

December 7, 2013 at 1:23PM, Edited September 4, 8:21AM

0
Reply
david

Who said Super 8 has been discontinued? It's still alive and functioning and has a very dedicated fanbase. Filmshooting.com is entirely devoted to the low gauge format.

December 7, 2013 at 1:30PM, Edited September 4, 8:21AM

15
Reply
Bolex16

the I see only one proble. 720 is too small.

December 7, 2013 at 2:57PM, Edited September 4, 8:21AM

0
Reply
Nelson

They tried this with still cameras and it was a complete flop. There are certainly zillions of unused film cameras out there, but this type of "solution" is just stupid. Just buy a digital camera to shoot digital and if you want to use antique or outdated equipment by the film that it is designed to work with.

December 7, 2013 at 3:15PM, Edited September 4, 8:21AM

5
Reply
Elliot

Neat, would like to see it paired with a small anamorphot.

December 7, 2013 at 3:31PM, Edited September 4, 8:21AM

11
Reply
Anthony Marino

OMG, I was considering selling my Beaulieu 4008, but now it could be a nice camera!

December 7, 2013 at 4:11PM, Edited September 4, 8:21AM

8
Reply
Simon

I would probably buy one. There are tons of 8mm cams to be had.

December 7, 2013 at 4:26PM, Edited September 4, 8:21AM

7
Reply

I shoot Super 8 in my elementary and middle school classes (we raise the money for telecine and film costs every semester). This sounds really cool. It would also be very useful as a simple way to test your Super 8 camera to see if it's working properly without having to run film through it. Usually it's a crap shoot, but this would be a great way to make sure all the components are working. How clever!

December 7, 2013 at 4:31PM, Edited September 4, 8:21AM

0
Reply

So glad I kept my first camera - as Super8 Canon 1014xls! I will have to try this!!!

December 7, 2013 at 4:49PM, Edited September 4, 8:21AM

0
Reply
Taras D

This is NOT a REAL product guys haha, its a theoretical concept design, trust me I wish it were so...check the date of the page and the other products haha...

December 7, 2013 at 5:29PM, Edited September 4, 8:21AM

0
Reply
Zachariah

what he said. lol

December 7, 2013 at 6:22PM, Edited September 4, 8:21AM

4
Reply
steve

This reminds me of a laser player that could read the old vinyl records digitally ... which was a commercial flop.

December 7, 2013 at 5:30PM, Edited September 4, 8:21AM

20
Reply
DLD

This is really, really cool!!!!

December 7, 2013 at 6:16PM, Edited September 4, 8:21AM

4
Reply
Cirillo

Soooo... if I buy a Bolex, and I advertise I shoot digital with it, can I be sued?

December 7, 2013 at 6:19PM, Edited September 4, 8:21AM

1
Reply
THAT Guy

Hehe make it very cheap and you can sell some, othervise its a flop. But they will start with high price and it will be doomed. There was concept with swapable digi 16mm mag for Arri cameras from one English developer but it never come to the light. I think everybody will love this, but nobody will buy it. :D Also 720p is too low resolution. But wat about that Super duper 8? You make bigger gate with file and you will get 16:9. ;)

December 7, 2013 at 6:46PM, Edited September 4, 8:21AM

21
Reply
Kuk

December 8, 2013 at 1:10AM, Edited September 4, 8:21AM

0
Reply
hawaj

nice..recycle..recycle…!!!!! these cameras are like swiss watches…I bought a super 16mm and 35 mm camera..original price around 200,000

also I am shooting on film and it's cheaper than digital…super 16 or 35mm…because you save so much on the post….and the images are stunning…and a 35mm movie camera is future proof!! I love it!

December 8, 2013 at 1:49AM, Edited September 4, 8:21AM

22
Reply
DIO

Because you save so much in the post and pay so much for processing and telecine. This pro-analog film bullshit is hilarious.

December 8, 2013 at 8:09AM, Edited September 4, 8:21AM

0
Reply
Natt

try it…film camera..cost processing vs rental of high end digital camera…and post…(for a normal production film is cheaper) if you know what your doing... I'm a student…and for me once you have the camera it is MUCH CHEAPER…(digital just has a lot more marketing…it's all a business to them)
(for larger productions they save the expense of archiving on film because they have already shot on film)
that's why you have BOARDWALK EMPIRE…and BREAKING BAD …saving with film

anyway try it yourself ..film started it all and is thriving in the digital world… from big production effects movies to stunning dcps..

December 8, 2013 at 10:13AM, Edited September 4, 8:21AM

0
Reply
DIO

I fail to see why so many digital image makers are so threatened by analog film that they have to resort to calling a mature, established medium, "bullshit". So, 120 years of images don't impress you? Methinks the bullshit term is going in the wrong direction...

December 9, 2013 at 5:33PM, Edited September 4, 8:21AM

20
Reply
Kinemech

Hi
I was wondering if someone would do this as it's being done for long for the medium format still cameras.
It would be great to have this, and I think it wouln't be relevant to use HD or more, as the lens would be the limit anyway for the real definition. 720p is he right choice i guess.
Let's go for it. (I could use my old 8mm camera, that's standing on a shelf for nothing nowadays)

December 8, 2013 at 3:32AM, Edited September 4, 8:21AM

0
Reply
Te o Nobahite

Apparently this guy is a designer, and this product will never materialize. I think it's a great idea, and maybe if the camera had a crystal sync it might work. But the variable shutter of the mechanical film camera makes this impossible with current tech.

December 8, 2013 at 4:15AM, Edited September 4, 8:21AM

0
Reply
Ted

I don't thing you bothered to read the website and or understand the concept being put forward. Event triggered digital cameras have been around for years in machine vision. Frame stores can hold an image and duplicate it against a time base until the next event trigger, or even interpolate movement, although I doubt a cartridge of that size has enough horsepower to interpolate in realtime. Seems most of the objections are "religion-based", (anti-film) rather than reality based. There are many paths to image making.

December 9, 2013 at 5:48PM, Edited September 4, 8:21AM

2
Reply
Kinemech

This is really astounding! I hope the best for the people over Nolab.

December 8, 2013 at 6:21AM, Edited September 4, 8:21AM

8
Reply
Edward Ornelas

December 8, 2013 at 6:50AM, Edited September 4, 8:21AM

5
Reply
Saied

I still remember RE-35 which got analog still film crowd excited couple years ago - http://re35.net/ LOL

December 8, 2013 at 7:17AM, Edited September 4, 8:21AM

0
Reply
Natt

Interesting, I suppose. But is not the "filmic esthetic" ,or in particular, that 8mm film look, lost when not actually recording to film (or 8mm film)?

December 8, 2013 at 9:55AM, Edited September 4, 8:21AM

0
Reply
wsmith

Nice idea but will stick with GH3 for now

December 8, 2013 at 10:15AM, Edited September 4, 8:21AM

16
Reply
Zusus

720p could be well enough as far as resolution goes... but I think they need to consider RAW-functionality if they want it to be taken seriously. At least for short bursts.

And for those who say that is doomed because it's flopped before probably should remember a story I heard about some engineers over at Ericsson who worked on this new-fangled idea of portable phones behind their executives back. Because Ericsson tried to launch that concept in the fifties and it flopped, so why would it work now, they reasoned. Well those older products were extremely primitive and barely worked. And also, thwy weighed a ton.

Now, do I think it will sell like hot-cakes (I'm a swede and not entirely sure what a hot-cake is)? No, not really. Yes, there are tons of cameras lying around. But of those, the vast majority are collecting dust simply because their owners aren't interested in using them any more than museum-pieces at best. Of those in filmmakers hands, most don't run, and of those that do, their owners are more of a film> digital person in the first place. So the market for a digital cartridge isn't exactly booming yet. And it's easier to get these pictures with off-the-shelf complete point-and-shooters too... but sure, if they budget this right as the narrow niche-product it is, itwill probably breake even when targeted to the right crowd.

December 8, 2013 at 10:40AM, Edited September 4, 8:21AM

0
Reply

I am not surprised but am concerned when false information is branded about as fact, which is irresponsible. The Super 8 cartridges have not been discontinued as the article states. Film is not as expensive as people make out and there are quite a few different film stocks available in Super 8, far more than there were when Super 8 was the popular home movie making medium.

P

December 8, 2013 at 10:51AM, Edited September 4, 8:21AM

0
Reply
Pj

Well, it turned out to be more expensive than I had expected. About 30 Euro for 2.5 min film plus 20 Euro for its development. If you want sound, digitization is facultative, and separate sound recording as well.

December 9, 2013 at 5:17AM, Edited September 4, 8:21AM

9
Reply
Thyl Engelhardt

Hmm... Film stock (even Super 8) is pretty expensive, especially the development. Besides that, stock like Kodachrome can not even be developed in color anymore, since the chemicals are not produced anymore. Only black & white... I would definitely use my super 8 camera's more if a product like this becomes available. Not for serious work, but definitely for the feel of using the camera itself.

December 11, 2013 at 12:57AM, Edited September 4, 8:21AM

0
Reply

I might be interested in a 35mm version to turn an old analogue SLR into a DSLR. :)

December 8, 2013 at 1:23PM, Edited September 4, 8:21AM

11
Reply

It'd be tough to fit a senor into smaller film planes :/

December 9, 2013 at 11:26AM, Edited September 4, 8:21AM

0
Reply

I've been wanting that as well, they did this joke some time ago: http://re35.net
It was an april fools joke. I discovered it in June, so I got really sad when I discovered that it was just a joke. Would love to play around more with my Nikon F3. But sometimes nothing can beat the feeling of loading it with a roll of Ektar :)

December 10, 2013 at 12:07PM, Edited September 4, 8:21AM

0
Reply
Jens

Yeah... unfortunately, this just a thought experiment on Hayes Urban's part.
A damn good one too.
I'm sure this idea, and something similar for other film/still cameras, could one day be real but right now the cost would kill it.
How about a digital film back for my Hasselblad?
Oh yeah, we got that.. for $18,000!!! ack!
http://www.bhphotovideo.com/c/product/737967-REG/Hasselblad_3034216_CFV_...
Wait! There's always the iPhone solution:
http://www.kickstarter.com/projects/96793993/hasselnuts-hasselblad-camer...

December 8, 2013 at 2:37PM, Edited September 4, 8:21AM

0
Reply
Derply Derp

Whatever happened to those guys doing a digital cartridge for the Arri SR 2?
I also can't believe that someone hasn't kickstarted a 12-16 MP back for 500C and Mamiya 645 bodies recording to CF.
I'd pay $1-2k for that no problem. :-)

December 8, 2013 at 6:44PM, Edited September 4, 8:21AM

9
Reply
marklondon

I met Hayes at SXSW a while back. He is a smart guy with a lot of know how.
I would love to see this project succeed!

December 9, 2013 at 12:55AM, Edited September 4, 8:21AM

0
Reply

If it records 720p h264....not usefull because of the lack of resolution and bad codec....and if it records 2k Raw....not useful because you need too much storage......

December 9, 2013 at 3:11AM, Edited September 4, 8:21AM

0
Reply
jesuan

If it records 2k raw it may very well be useful for certain use cases, especially when lossless compression is used... also, any kind of 10 bit 4:2:2 codec in 2k or 2.5k would be awesome and very versatile, because this wouldn't use too much storage space at all!

December 9, 2013 at 5:26AM, Edited September 4, 8:21AM

0
Reply

This is the most ridiculous idea which is practically impossible due to the mechanics of a Super 8 camera, I can't believe people this it's real.

Pav

December 9, 2013 at 5:05AM, Edited September 4, 8:21AM

9
Reply
Pj

Nothing imposible about it. Event triggered sensor, probably global shutter, driven by a tach signal generated by the pulldown claw passing a sensor. After that, what else is there? I doubt a variable shutter would be of much use to this system, but the vast majority of Super 8mm cameras didn't have that feature. Anyways, if the global shutter is instead triggered by the actual shutter, and the sensitivity and black level of the chip is not automaticaly adjusted for gain, it could perform as an analog analog. (heh). I love how this is freaking out the digital exclusionists!

December 9, 2013 at 5:23PM, Edited September 4, 8:21AM

0
Reply
Kinemech

I honestly would be OK with h.264 compression and would prefer it to RAW in this instance. Keep the cost down and give me a grainy, contrasty image right out of the camera. If this is going to replace Super 8 for me, give me all the characteristics of Super 8. Let me dial in a "film stock" or look and pull the trigger. Give me that lo-res 4:3 image with all of its flaws straight from the camera. Don't try to implement RAW as an attempt to make it some sort of digital cine "game changer" that can compete with the big boys. Embrace its place in the world and don't try to make it something it's not. Give me Super 8 film in a digital format and I'll be more than excited.

December 9, 2013 at 5:20AM, Edited September 4, 8:21AM

35
Reply
BDickman

I echo the concerns of an earlier post (Pj) about the Hayes Urban site stating:
"Unfortunately, the proprietary film cartridges are no longer in production and existing supplies are quickly diminishing.."

I live in Toronto, and buy Super 8mm carts all the time from Niagara Custom Lab.
Mostly Tri-x, but Kodak's colour negatives are available too.
LIFT (Liaison of Independent Filmmakers) here in T.O. is a great resource as well.
$20/cart to buy, $20 to process.
(Transfers can get expensive, so I've cobbled together a DIY DSLR/Magic Lantern/projector setup..)

I like the idea of the NOLAB cart, but wonder about the demand, given the increasing availability of great film stocks.

December 9, 2013 at 5:57AM, Edited September 4, 8:21AM

0
Reply
Ruben Huizenga

1. Super 8 cartridges ARE available.
2. Technically, film cameras COULD become obsolete if Point 1 stopped being true.
3. 720p .H264 is MORE than enough for the super 8 format. Have you ever seen the format?
4. This would NOT be popular for "budding filmmakers" because they will want sound and non-fuzzy images. This will be an awesome effect, though, and I'll jump at the chance to support it.

I like this website, but this article seems hastily assembled.

December 9, 2013 at 8:20AM, Edited September 4, 8:21AM

0
Reply
Jared

"I like this website, but this article seems hastily assembled."

You might want to put that in your autotext.

December 9, 2013 at 2:02PM, Edited September 4, 8:21AM

14
Reply
marklondon

There are Super 8 cameras with sound recording. So, if the project decides to include an audio recording device, sound would be possible with those cameras.

December 11, 2013 at 4:45AM, Edited September 4, 8:21AM

0
Reply
Thyl Engelhardt

This idea has been around for a LONG WHILE and they have yet to actually make anything. It's just about generating attention for their company. This so called product will never be released.

December 9, 2013 at 9:35AM, Edited September 4, 8:21AM

0
Reply
The Rising

http://www.redsharknews.com/technology/item/1294-super-8-bounces-back-wi...

Now THAT is a reality. A brand new Super8 camera in development that will be released in early 2014.

December 9, 2013 at 9:37AM, Edited September 4, 8:21AM

0
Reply
The Rising

The hipsters will eat this right up. (see Instagram)

December 9, 2013 at 11:35AM, Edited September 4, 8:21AM

0
Reply
John

This would a be fun for a quick weekend project, but no one should be asking for this to be their A-cam. Seriously? Raw? Why would that even be useful on something like this?

December 9, 2013 at 11:41AM, Edited September 4, 8:21AM

0
Reply

I'd buy that

December 9, 2013 at 12:18PM, Edited September 4, 8:21AM

2
Reply
Jericho

All this enthusiasm, but don't people get it, the digital cartridge cannot work, since Super 8 cameras have a mechanical shutter will need to be removed and that's not easy. Then there are other moving parts which will have to be removed, to add to that there are other mechanical and optical issues making this impossible.

P

December 9, 2013 at 1:06PM, Edited September 4, 8:21AM

12
Reply
Pj

Why? The sensor is read out and reset when the film transport mechanism is operated. After that, it starts recording anew. I don't see why the mechanical shutter should need to be removed. If I don't need to remove the shutter for a film, why should I have to remove it for a sensor?

December 11, 2013 at 4:57AM, Edited September 4, 8:21AM

0
Reply
Thyl Engelhardt

This is actually awesome...if they get this to work it will make for added functionality for Super 8. Super 8 film is NOT dead, by any stretch: these great people are showing the Industry that it can be useful in production, and providing modern film stock for these cool old relics. They also sell refurbished cameras, some even modded for Max 8 which is a new standard for film gates which provides HD–ratio images on Super 8 film.

I am hoping what will come next is a drop–in cartridge that you can put in a film 35mm camera to turn that digital. I would love to shoot digital with my lovely old Pentax MX...

December 10, 2013 at 9:52AM, Edited September 4, 8:21AM

1
Reply

I do have a Nizzo with a very good zoom in pristine like new

December 12, 2013 at 1:14PM, Edited September 4, 8:21AM

0
Reply
Sarah

I wait this for ten years....

December 13, 2013 at 3:35AM, Edited September 4, 8:45AM

9
Reply

Pages
